Picture of PFE3933 31/2 0-300 SPRNKLR GAUGE 1/4 BTM

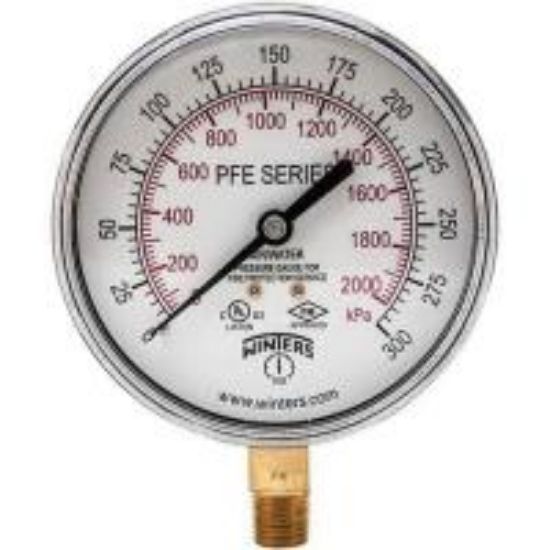

PFE3933 31/2 0-300 SPRNKLR GAUGE 1/4 BTM

Winters PFE3933 1/4 in. NPT 0 - 300 psi Plastic Case Bottom Sprinkler Gauge, 3-1/2 in.
Manufacturer: Winters
$0.00
Water Sprinkler Gauge, PFE Series, 3.874 in. Length, 1.228 in. Width, 4.874 in. Height, Plastic Case, End Connection 1: Bottom Mount NPT, Fitting Size 1: 1/4 in., Diameter: 3-1/2 in., Colour/Finish Name: Black, Temperature Range: -40 to 150F Ambient/Process, IP52 Enclosure, Specifications - ASME: ASME B40.100, Pressure - High: 300 psi/kPa, Pressure - Low: 0 psi/kPa, Plus or Minus 3-2-3% Accuracy
Products specifications
products.specs.attributename products.specs.attributevalue
Brand/Model Compatibility Non-Clogging and Non-Corrosive Media
Colour/Finish Category Blacks
Colour/Finish Name Black
End Connection NPT
End Connection 1 NPT
End Connection 2 NPT
Fitting Size 1 1/4 in.
Fitting Size 2 1/4 in.
Fitting Sizes 1/4 in. x 1/4 in.
Height 4-7/8 in.
Installation Type Bottom
Length 3-7/8 in.
Material Plastic
Maximum Temperature 150
Minimum Temperature -40
Pressure - High 300 psi
Specifications - ASME ASME B40.100
Specifications - FM Approved Yes
Specifications - UL Listed UL 393
Width 1-11/50 in.
Application Fire Sprinkler Systems;Fire Fighting Equipment
Product Type Pressure Gauges
