PFP660 4 0-160 PREM LIQ.F GAUGE 1/2BTM

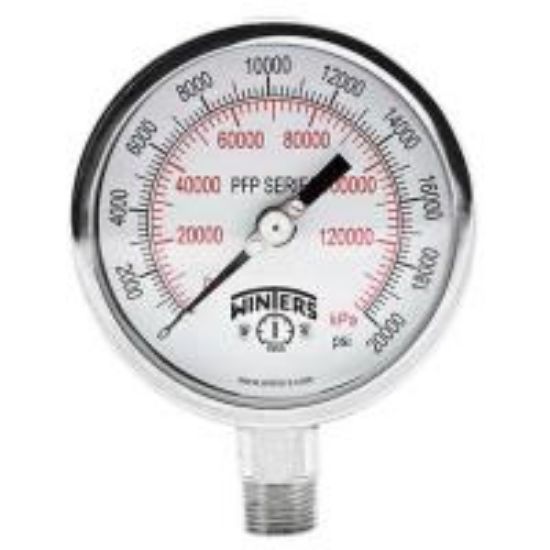

Winters PFP660 304 Stainless Steel Case Glycerine Filled Premium Pressure Gauge, 4 in. Dia., 1/2 in. Bottom Mount NPT, 0 - 160 psi
Manufacturer: Winters
$0.00
Glycerine Filled Premium Pressure Gauge, PFP Series, 3.964 in. Length, 2.147 in. Width, Stainless Steel Case, End Connection 1: Bottom Mount NPT, Fitting Size 1: 1/2 in., Material Type: 304, Diameter: 4 in., Temperature Range: -4 to 150F Ambient, -40 to 250F Process, NEMA 4X/IP66, EN60529-1 (IEC529-1) Enclosure, Specifications - ASME: ASME B40.100, Pressure - High: 160 psi/kPa, Pressure - Low: 0 psi/kPa, Plus or Minus 1% Accuracy
Products specifications
products.specs.attributename products.specs.attributevalue
Length 3.964 in.
Width 2.147 in.
Material Stainless Steel Case
Accuracy Plus or Minus 1%
Diameter 4 in.
Enclosure NEMA 4X/IP66, EN60529-1 (IEC529-1)
End Connection 1 Bottom Mount NPT
Fitting Size 1 1/2 in.
Material Type 304
Pressure - High 160 psi/kPa
Pressure - Low 0 psi/kPa
Specifications - ASME ASME B40.100
Temperature Range -4 to 150F Ambient, -40 to 250F Process
