TTD403 3 0-75 70/320 TRIDICATOR

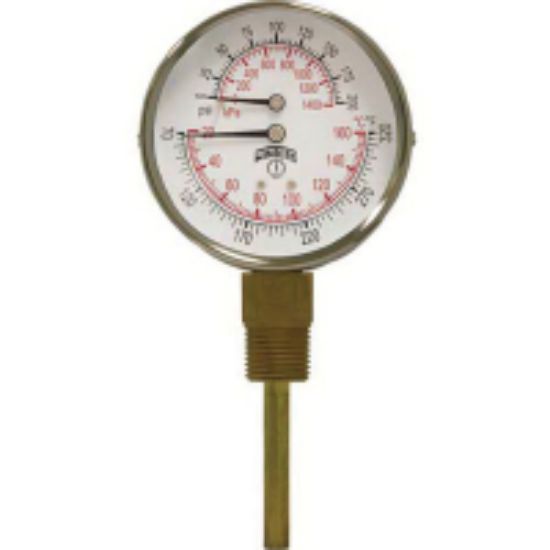

Winters TTD403 Black Painted Steel Case Tridicator, 3 in., 1/2 in. NPT Bottom, 0 - 75 psi/kPa

Manufacturer: Winters

$0.00

Qty:

Tridicator, TTD Series, 6.522 in. Length, 3.2 in. Width, 3 in. Dial Size, 70 - 320F, 20 to 160C and 0 - 75 psi/kPa Measuring Range, Degree F/C, psi/kpa Units of Measure, Connection Type: 1/2 in. NPT, Bottom Connection Location, Plus or Minus 3-2-3% Pressure, 3% Temperature Accuracy, Painted WhAluminum Dial Face, Steel Case Material, Glass Lens Material, Anodized Black Aluminum Pointer Material, Brass and Phosphor Bronze Movement Material, Phosphor Bronze Tube Material, Brass Socket Material, Colour/Finish Name: Black Painted Case, IP50 Enclosure, 2-1/2 in. Stem Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.522 in.
Width	3.2 in.
Accuracy	Plus or Minus 3-2-3% Pressure, 3% Temperature
Case Material	Steel
Colour/Finish Name	Black Painted Case
Connection Type	1/2 in. NPT
Dial Face	Painted White Aluminum
Dial Size	3 in.
Enclosure	IP50
Stem Length	2-1/2 in.
