C++ 5550015 1 1/2 PEX X 1 1/2 NPT WIPEX

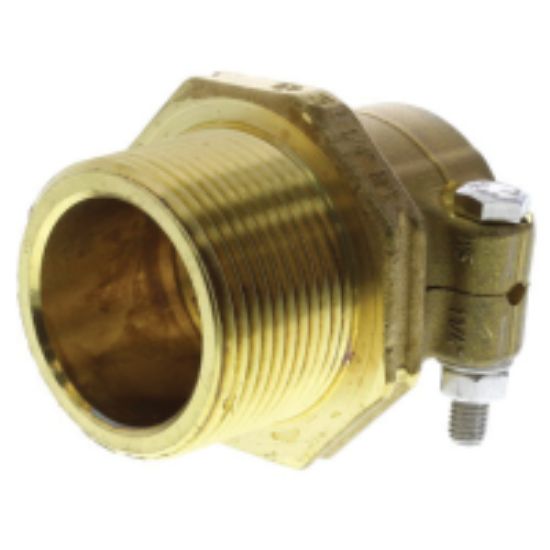

Wipex 5550015 DZR Brass Coupling, 1-1/2 in. , PEX x NPT

Manufacturer: Ecoflex

$0.00

Qty:

Wipex Coupling, 2.8 in. Length, DZR Brass, End Connection 1: PEX, End Connection 2: NPT, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., Pressure - Maximum: 145 psi, Specifications - ASTM: ASTM F-877, CSA B137.5 Specifications - CSA Certified, Specifications - NSF: NSF 14 and 61, Specifications - NSF Certified: Yes, 0.906 in. Compression x 1.453 in. Thread Diameter - Inside 1, Other Physical Dimensions: 12mm Wrench, 1 in. Thread Length, 1.18 in. Insertion Depth

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.8 in.
Material	DZR Brass
Diameter - Inside 1	0.906 in. Compression x 1.453 in. Thread
End Connection 1	PEX
End Connection 2	NPT
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Pressure - Maximum	145 psi
Specifications - CSA Certified	CSA B137.5
Specifications - NSF	NSF 14 and 61
Specifications - NSF Certified	Yes
Thread Length	1 in.
