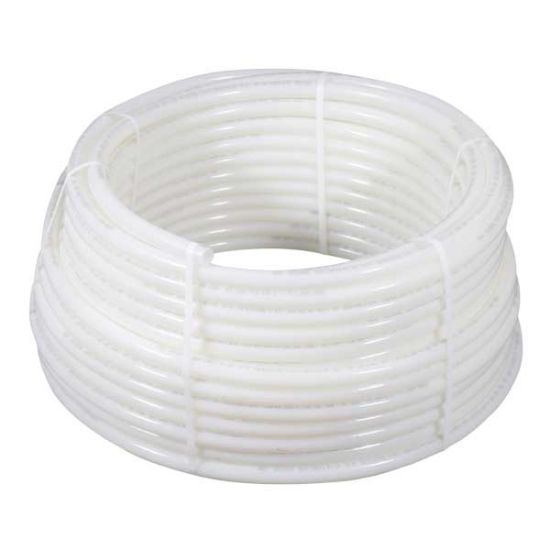

LD+ A1220625 5/8 X 1000 HEPEX COIL

Uponor A1220625 5/8 in. Wirsbo hePEX Tubing, 1000 ft. PEX A Coil
Manufacturer: Uponor
$0.00
Wirsbo hePEX tubing is used for closed-loop heating and cooling applications, including radiant and hydronic distribution. It has an EVOH oxygen diffusion barrier that meets German DIN 4726/9. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Name White
Diameter - Inside 1 4/7 in.
Diameter - Outside 5/8 in.
End Connection Crimp, F1960 Cold Expansion, Compression
End Connection 1 Crimp, F1960 Cold Expansion, Compression
End Connection 2 Crimp
Length 1000 ft
Material Plastic
Material Type PEX A
Maximum Temperature 200
Package Quantity 1
Pipe/Tubing Size 5/8 in.
Pressure - Maximum 160 psi
Specifications - ANSI ANSI 14;ANSI 61
Specifications - ASTM ASTM F-876;ASTM F-877;ASTM F-1960;ASTM F-2023;ASTM E-84;;ASTM E119
Specifications - AWWA AWWA C-904
Specifications - CSA Certified CSA B137.5;CSA B214
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14;NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed UL 263
Style Name WirsbohePEX
Product Type Plastic Pipe
