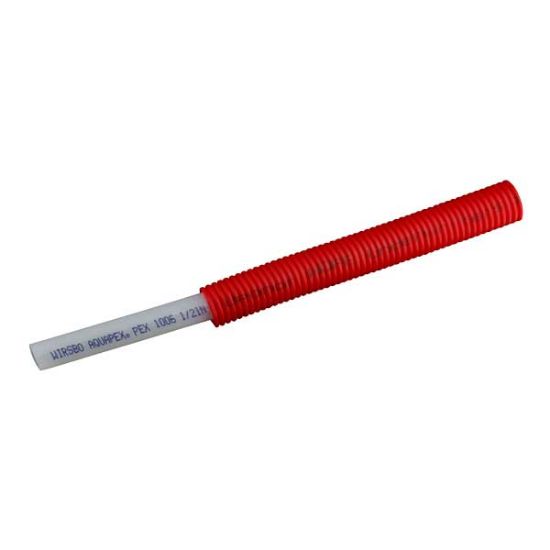

Picture of F1092500 1/2 X 400 PRE-SLEEVED RED COIL
Picture of F1092500 1/2 X 400 PRE-SLEEVED RED COIL
Picture of F1092500 1/2 X 400 PRE-SLEEVED RED COIL

F1092500 1/2 X 400 PRE-SLEEVED RED COIL

Uponor F1092500 1/2 in. Pre-Sleeved AquaPEX Red Sleeve, 400 ft. PEX A Coil
Manufacturer: Uponor
$0.00
Pre-sleeved Uponor AquaPEX tubing is used in hot and cold water-distribution systems. The highdensity polyethylene (HDPE) corrugated sleeve provides protection for installations in concrete slabs or soil and allows for removal and replacement of the tubing if required. Note: This tubing can also be used in radiant heating and cooling systems containing no ferrous corrodible components or where ferrous components are isolated from the tubing. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Name Red
Diameter - Inside 1 1/2 in.
End Connection PEX x IPS
End Connection 1 Crimp, F1960 Cold Expansion, Compression
End Connection 2 IPS
Length 400 ft.
Material Plastic
Material Type Cross-Linked Polyethylene;PEX A
Maximum Temperature 200
Package Quantity 1
Pipe/Tubing Size 1/2 in.
Pressure - Maximum 160 psi
Schedule SDR9
Specifications - ASTM ASTM F-1960;ASTM E-119;ASTM F-876;ASTM F-2023
Specifications - CSA Certified CSA B137.5;CSA B214
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14;NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name AquaPEX
Product Type Pipe Sleeves
Diameter - Outside 1/2 in.
