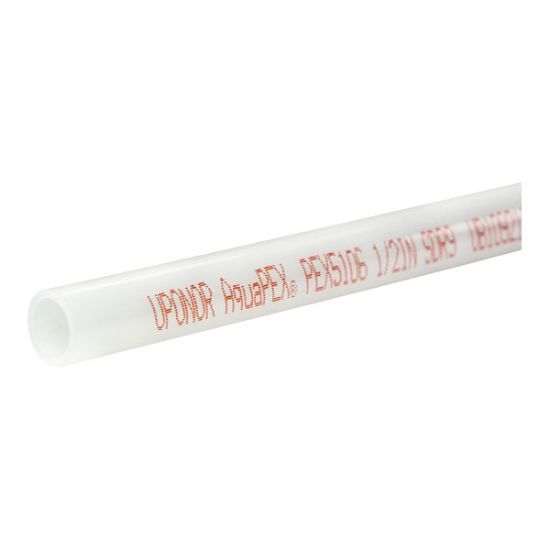

Picture of F4921000 1 X20 AQUAPEX RED STR LEN

F4921000 1 X20 AQUAPEX RED STR LEN

Uponor F4921000 1 in. AquaPEX Tubing, White with Red Print, 20 ft. PEX A Straight Pipe, 200 ft. (10 Per Bundle)
Manufacturer: Uponor
$0.00
Uponor AquaPEX white tubing with red print is an Engel-method, PEX-a pipe designed for hot potable water distribution systems, but can also be used in radiant heating and cooling systems containing no ferrous corrodible components or where ferrous components are isolated from the tubing. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Name Red
Diameter - Inside 1 25/29 in.
Diameter - Outside 1 in.
End Connection Crimp, F1960 Cold Expansion, Compression
End Connection 1 Crimp, F1960 Cold Expansion, Compression
End Connection 2 PEX
Length 200 ft.
Material Plastic
Material Type PEX A
Maximum Temperature 200
Pipe/Tubing Size 1 in.
Pressure - Maximum 160 psi
Pressure Class 150#
Size 1 in. x 20 ft.
Specifications - ANSI ANSI 14;ANSI 61
Specifications - ASTM ASTM F-876;ASTM F-877;ASTM F-1960;ASTM F-2023;ASTM E-84;ASTM E-119;ASTM E-814
Specifications - AWWA AWWA C-904
Specifications - CSA Certified CSA B137.5;CSA B214
Specifications - UL Listed UL 1821;UL 263
Style Name AquaPEX
Application Radiant Heating and Cooling Systems
Product Type Plastic Pipe
Package Quantity 10 per bundle
