Picture of H1240500 1/2X500 HELIOPEX

H1240500 1/2X500 HELIOPEX

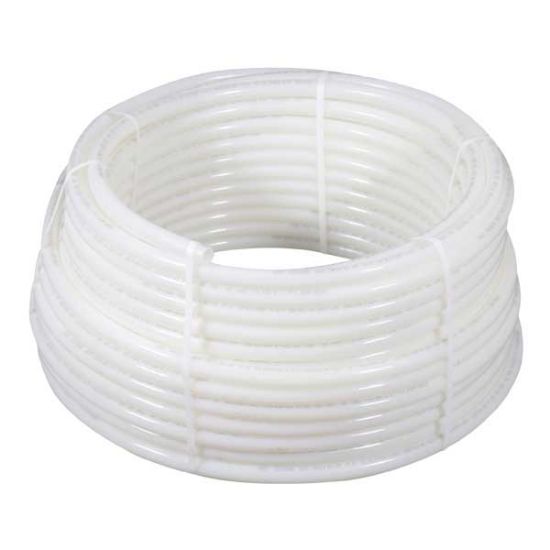

Uponor H1240500 1/2 in. helioPEX X2 Tubing, 500 ft. PEX Coil
Manufacturer: Uponor
$0.00
Manufactured using an Uponor-proprietary technology, Uponor helioPEX X2 is an oxygen-barrier PEX pipe that meets DIN 4726 and is designed as a competitive alternative for residential radiant heating applications. The pipe features exceptional workability, flexibility, and kink repairability and is backed by a 25-year limited warranty. Uponor helioPEX X2 is rated and listed by the Hydrostatic Stress Board of PPI at 93.3 deg C (200 deg F) at 80 psi, 82.2 deg C (180 deg F) at 100 psi, and 23 deg C (73.4 deg F) at 160 psi. The product offering is available in 1/2 in., 5/8 in., or 3/4 in. coils and is compatible with ProPEX ASTM F1960 expansion ASTM F2080 compression, and ASTM F1807 crimp fittings. Note: Uponor helioPEX X2 is not approved for potable-water applications.
Products specifications
products.specs.attributename products.specs.attributevalue
Length 500 ft.
Material Plastic
Material Type PEX A
Maximum Temperature 180
Pipe/Tubing Size 1/2 in.
Pressure - Maximum 160 psi
Specifications - ASTM ASTM F876;ASTM F877
Specifications - CSA Certified CSA B137.5
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name HelioPEX
Product Type Plastic Pipe
Diameter - Outside 1/2 in.
End Connection Crimp, F1960 Cold Expansion, Compression
End Connection 1 Crimp, F1960 Cold Expansion, Compression
Package Quantity Pack of 1
Application Potable Water
