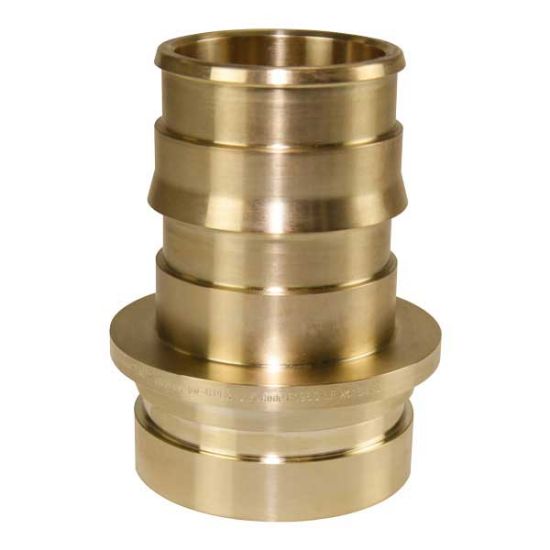

LFV2973030 GROOVE ADAPT 3 PEX X 3 IPS

Uponor LFV2973030 ProPEX F1960 LF Groove Fitting Adapter, 3 in. PEX LF Brass x 3 in. IPS Groove
Manufacturer: Uponor
$0.00
ProPEX lead-free (LF) brass copper tube size (CTS) roll-groove fitting adapters provide a direct connection to roll-groove connections designed to meet CSA B242-05. These fittings are CTS size on the roll-groove connection side. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX Expansion x IPS Groove
End Connection 1 IPS Groove
End Connection 2 IPS Groove
Fitting Size 1 3 in.
Fitting Size 2 3 in.
Fitting Sizes 3 in. x 3 in.
Length 1-1/4 in.
Material Brass
Maximum Temperature 200
Minimum Temperature 73
Pressure - Maximum 160 psi
Specifications - ANSI ANSI 14;ANSI 61
Specifications - ASTM ASTM F-1960;ASTM F-877
Specifications - CSA Certified CSA B137.5;CSA B242-2005
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14;NSF 61
Specifications - NSF Certified Yes
Style Name ProPEX
Product Type Brass Adapters
Package Quantity 1
