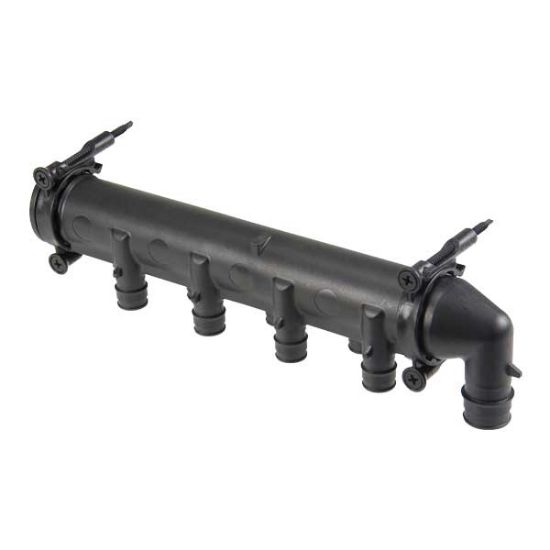

Q2087550 3/4 EP BRANCH MULTI-PORT ELBOW

Uponor Q2087550 3/4 in. EP Branch Multi-Port Elbow, 8 Outlets with Mounting Clips
Manufacturer: Uponor
$0.00
Engineered polymer (EP) branch multi-port elbows feature an integrated 3/4 in. or 1 in. ProPEX inlet with 1/2 in. ProPEX branch outlets. 1 The elbows are designed for commercial plumbing applications to eliminate the need for multiple connections. Product includes EP Mounting Clips (F7051250) with Phillips self-tapping screws. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX x PEX x PEX
End Connection 1 PEX
End Connection 2 PEX
End Connection 3 PEX
Fitting Size 1 3/4 in.
Fitting Size 2 1/2 in.
Fitting Sizes 3/4 in. x 1/2 in.
Height 2-1/3 in.
Length 9-4/5 in.
Material Plastic
Material Type Engineered Polymer
Pressure - Maximum 150 psi
Size 3/4 in. x 1/2 in.
Specifications - CSA Certified CSA B137.5
Specifications - NSF NSF 14;NSF 61
Specifications - NSF Certified Yes
Width 1-77/100 in.
Product Type Hydronic Branch Manifolds
Package Quantity 1
Outlet Quantity 8
