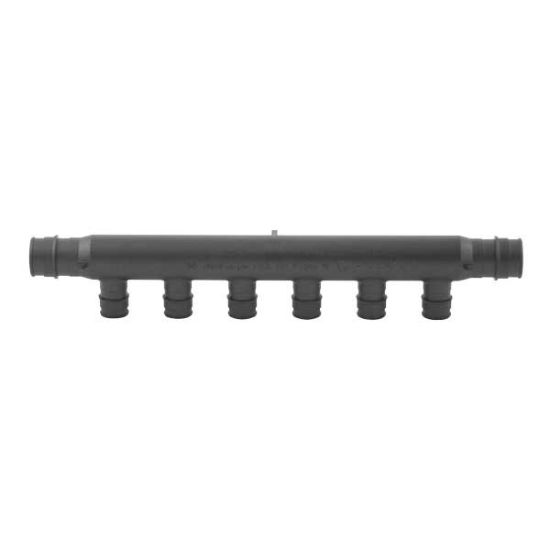

Q2267557 3/4 T 6 OUT PLAST MANIFOLD

Uponor Q2267557 EP Flow-Through Multi-Port Tee, 6 Outlets, 3/4 in. x 3/4 in. ProPEX F1960
Manufacturer: Uponor
$0.00
Engineered polymer (EP) flow-through multi-port tees feature 3/4 in. or 1 in. ProPEX inlets with 1/2 in. ProPEX branch outlets. The tees are made of EP, a high-performance material used in demanding hot-water applications Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection ProPEX
End Connection 1 PEX
End Connection 2 IPS
Fitting Size 1 3/4 in.
Fitting Size 2 1/2 in.
Fitting Sizes 3/4 in. x 1/2 in.
Flow Rate 7.5 gpm;3.75 gpm
Height 9-2/5 in.
Lead Law Compliant Yes
Length 9-2/5 in.
Material UDEL GF12
Material Type Engineered Polymer;UDEL GF12
Maximum Temperature 320
Pressure - Maximum 150 psi
Specifications - ASTM ASTM E-814;ASTM F-877;ASTM F-1960;ASTM E-119
Specifications - CSA Certified CSA B137.5
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 61;NSF 14
Specifications - NSF Certified Yes
Specifications - UL Listed UL 263
Weight 0.17 lb
Origin Domestic
Product Type Hydronic Branch Manifolds
End Connection 3 ProPEX
Package Quantity 10
Outlet Quantity 6
