Q2347550 3/4 EP BRANCH OPPOS MP TEE

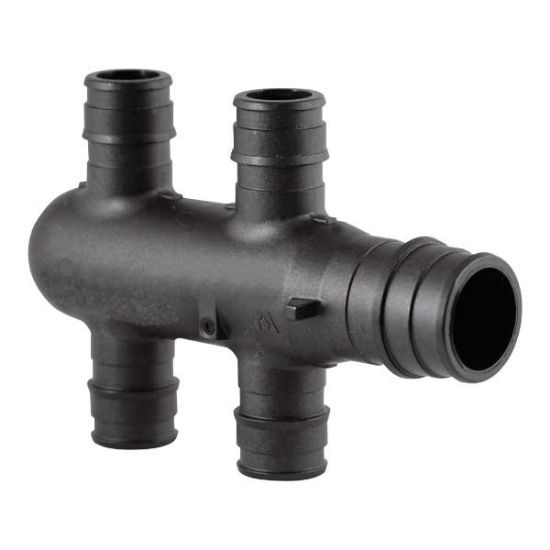

Uponor Q2347550 3/4 in. EP Branch Opposing-Port Multi-Port Tee, 4 Outlets
Manufacturer: Uponor
$0.00
Engineered polymer (EP) branch opposing-port multi-port tees feature a 3/4 in. ProPEX inlet with opposing 1/2 in. ProPEX branch outlets. These are designed for a central location to facilitate piping in two directions. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection ProPEX x ProPEX
End Connection 1 ProPEX
End Connection 2 ProPEX
Fitting Size 1 3/4 in.
Fitting Size 2 1/2 in.
Fitting Sizes 3/4 in. x 1/2 in.
Flow Rate 13.2 gpm at 12 fps;8.8 gpm at 8 fps
Height 2-3/8 in.
Length 3-4/7 in.
Material Plastic
Material Type Engineered Polymer
Maximum Temperature 320
Pressure - Maximum 150 psi
Size 3/4 in. x 1/2 in.
Specifications - CSA Certified CSA B137.5
Specifications - NSF NSF 14;NSF 16
Specifications - NSF Certified Yes
Width 1-9/50 in.
Product Type Hydronic Branch Manifolds
Package Quantity 10
Outlet Quantity 4
