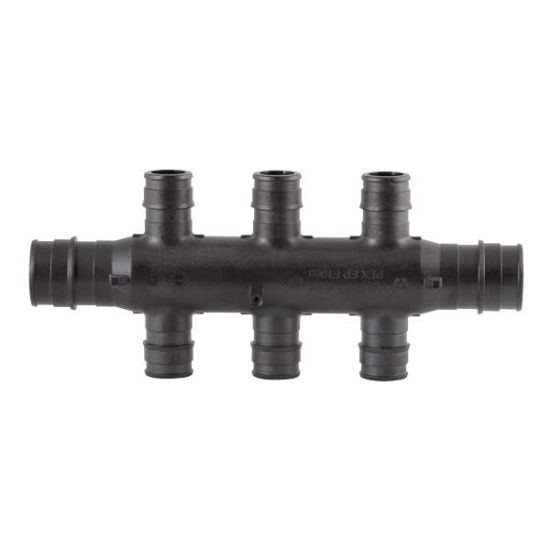

Picture of Q2367557 3/4 6OUT EP F-T OPP.PORT MP TEE

Q2367557 3/4 6OUT EP F-T OPP.PORT MP TEE

Uponor Q2367557 EP Flow-Through Opposing-port Multi-Port Tee, 6 Outlets, 3/4 in. x 3/4 in. ProPEX F1960
Manufacturer: Uponor
$0.00
Engineered polymer (EP) flow-through opposing-port multi-port tees feature 3/4 in. ProPEX inlets with opposing 1/2 in. ProPEX branch outlets. The tees are designed for central location to facilitate piping in two directions Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX x ProPEX
End Connection 1 PEX
End Connection 2 ProPEX
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in.
Flow Rate 13.2 gpm at 12 fps;8.8 gpm at 8 fps
Height 2-3/8 in.
Length 5-2/3 in.
Material Plastic
Material Type Engineered Polymer
Maximum Temperature 320
Pressure - Maximum 150 psi
Size 3/4 in. x 3/4 in.
Specifications - CSA Certified CSA B137.5
Specifications - NSF NSF 14;NSF 16
Specifications - NSF Certified Yes
Width 1-9/50 in.
Product Type Hydronic Flow-Through Manifolds
End Connection 3 ProPEX
Package Quantity 10
Outlet Quantity 6
