WIRQ2387550

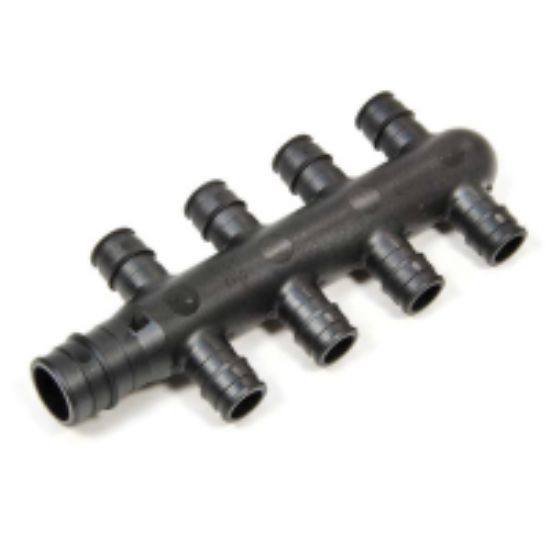

Uponor Q2387550 3/4" EP Branch Opposing-port Multi-port Tee, 8 outlets

Manufacturer: Uponor

$0.00

Qty:

Opposing Row EP Branch Multi-Port Elbow, 6.08 in. Length, 1.18 in. Width, 2.38 in. Height, Engineered Polymer, End Connection 1: PEX, Fitting Size 1: 3/4 in., 13.2 gpm at 12 fps, 8.8 gpm at 8 fps Flow Rate, 320F No Pressure, 210F Working Maximum - Temperature, 8 Outlet Quantity, Pressure - Maximum: 150 psi at 210F, Specifications - ASTM: ASTM F-877, ASTM F-1960, Specifications - NSF Certified: Yes, End Connection 2: ProPEX, Fitting Size 2: 1/2 in., CSA B137.5 Specifications - CSA Certified, Specifications - NSF: NSF 14 and 16

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.08 in.
Width	1.18 in.
Height	2.38 in.
Material	Engineered Polymer
End Connection 1	PEX
End Connection 2	ProPEX
Fitting Size 1	3/4 in.
Fitting Size 2	1/2 in.
Flow Rate	13.2 gpm at 12 fps, 8.8 gpm at 8 fps
Maximum Temperature	320F No Pressure, 210F Working
Outlet Quantity	8
Pressure - Maximum	150 psi at 210F
Specifications - CSA Certified	CSA B137.5
Specifications - NSF	NSF 14 and 16
Specifications - NSF Certified	Yes
