Q5521515 MALE ADP 1 1/2PEX X 1 1/2NPT

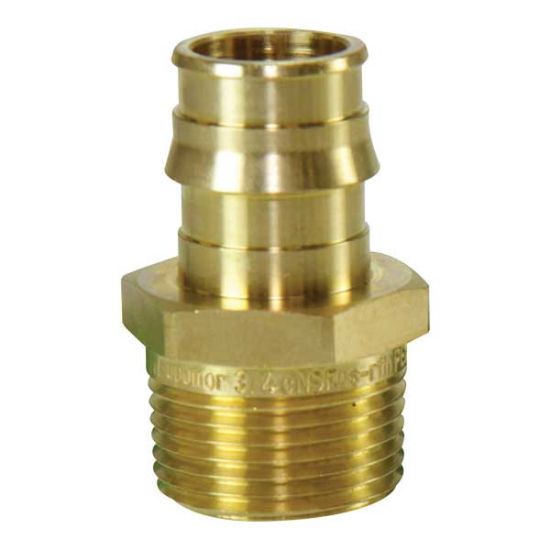

Uponor Q5521515 ProPEX F1960 Brass Male Threaded Adapter, 1-1/2 in. PEX x 1-1/2 in. NPT
Manufacturer: Uponor
$0.00
ProPEX male threaded adapters connect Uponor PEX pipe to male NPT threads for use in hydronic heating and cooling systems. One end of the adapter is manufactured with Uponor ProPEX fittings for connection to Wirsbo hePEX tubing and the other end is manufactured to adapt female threaded connections. These adapters are not safe for direct burial in soil. Note: Not for potable use. Note: Temperature and pressure ratings stated are hydrostatic ratings. For domestic hot-water (DHW) and DHW recirculation installations, operating conditions should not exceed 140 deg F (60 deg C) at 80 psi (5.5 bar) in accordance with ASTM F2023. For additional information regarding application-specific temperature and pressure ratings, refer to the Uponor PEX Piping Systems Design and Installation Manual.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX Expansion x MNPT
End Connection 1 PEX Expansion
End Connection 2 MNPT
Fitting Size 1 1-1/2 in.
Fitting Size 2 1-1/2 in.
Fitting Sizes 1-1/2 in. x 1-1/2 in.
Length 2-8/10 in.
Material Brass
Maximum Temperature 200
Minimum Temperature 73
Pressure - Maximum 200 psi
Specifications - ANSI ANSI 14;ANSI 61
Specifications - ASTM ASTM F-1960;ASTM F-877
Specifications - CSA Certified CSA B137.5
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14;NSF 61
Specifications - NSF Certified Yes
Style Name ProPEX
Product Type Brass Adapters
Package Quantity 1
