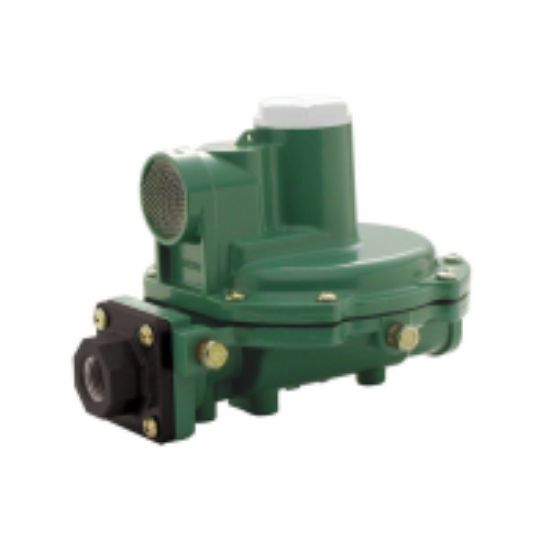

R622-EBCH 1/2X1/2 2# 2ND STAGE LP REG

R622E-BCH Service Propane Gas Regulator, 1/2 in. FNPT x 3/4 in. FNPT

Manufacturer: Western Natural Gas Products

$0.00

Qty:

Service Gas Regulator, 7.46 in. Length, 5-1/4 in. Width, 5.41 in. Height, End Connection 1: FNPT, End Connection 2: FNPT, -20 to 160F Maximum - Temperature, Gas Recommended Valve Application, Specifications - UL Listed: Yes, Valve Size: 1/2 x 3/4 in., BTU: 1250000 btu/hr, Fuel Type: Propane Gas, 10psig Inlet Pressure, 1 - 2.2psig Outlet Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.46 in.
Width	5-1/4 in.
Height	5.41 in.
BTU	1250000 btu/hr
End Connection 1	FNPT
End Connection 2	FNPT
Fuel Type	Propane Gas
Inlet Pressure	10psig
Maximum Temperature	-20 to 160F
Outlet Pressure	1 - 2.2psig
Recommended Valve Application	Gas
Specifications - UL Listed	Yes
Valve Size	1/2 x 3/4 in.
