92 1/2 ATTACHE POUTRE HAUT STD NOIR

92 1/2 ATTACHE POUTRE HAUT STD NOIR
Fabricant: Anvil International
0,00 $

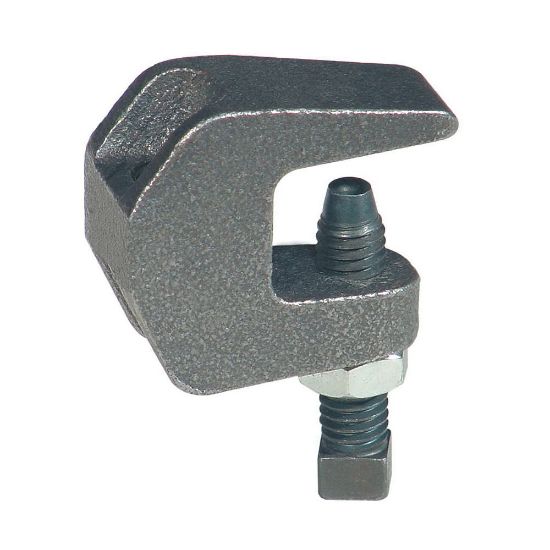

Universal C-Type Standard Throat Beam Clamp, Model: 92, 1-13/16 in. Length, 1-1/16 in. Width, Ductile Iron, Colour/Finish Name: Plain, Rigid Conduit Size: 3/4 in., Specifications - FM Approved: Yes, Specifications - MSS: MSS SP-58 and SP-69 (Type 19 and 23), Specifications - UL Listed: Yes, 7/16 in. Thickness, 950 lbs. at Top, 760 lbs. at Bottom Work Load Limit, 1/2 in. Rod, Maximum Temperature: 450F, 125 in-lbs Torque Rating
Spécifications des produits
products.specs.attributename products.specs.attributevalue
Enduit Plain
Nom de couleur/fini Plain
Taille de tuyau compatible 1/2 po
Longueur 1-4/5 po
Matériau Ductile Iron
Température maximale 450
Taille de la tige 1/2 po
Caractéristiques techniques - Approuvé FM Oui
Caractéristiques techniques - MSS MSS SP-58;MSS SP-69 (Type 19 and 23)
Caractéristiques techniques - Homologué UL Yes
Épaisseur 0.4375 po
Largeur 1-1/16 po
Limite de charge 950 lb
Type de produit Attaches pour poutres
