Picture of 61-507-01 11/2 BRZ CHECK VALVE

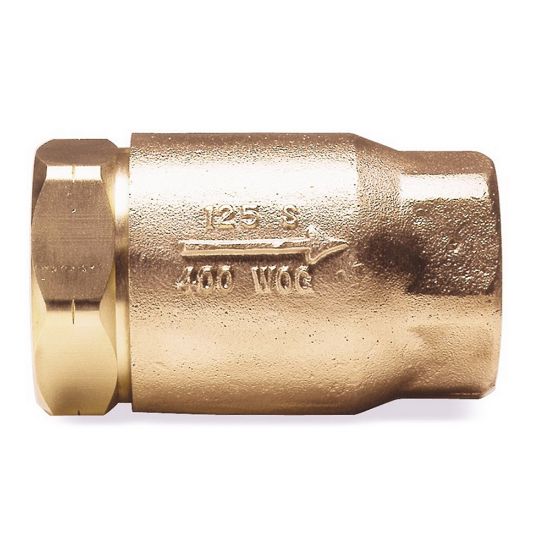

61-507-01 11/2 BRZ CHECK VALVE

Conbraco 6150701 61-500 Series 1-1/2 in. FNPT Cast Bronze In-line Check Valve
Manufacturer: Conbraco
$0.00
Inline Check Valve, 61-500 Series, Model: CVBE112, 4.94 in. Length, 2.81 in. Height, Cast Bronze, End Connection 1: FNPT, Pressure - Maximum: 400psig CWP (Non-Shock) at 100F, Flow Rate: 65 gpm, End Connection 2: FNPT, Specifications - ASTM: ASTM C-84400, EPR/EPDM Valve Seat, Valve Size: 1-1/2 in., EPDM Check Valve Disc, Maximum Temperature: 250F
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Height 2-81/100 in.
Length 4-93/100 in.
Maximum Temperature 250
Pressure - Maximum 400 psig CWP
Specifications - ASTM ASTM C-84400
Style Name 61-500 Series
Valve Disc Material EPDM
Valve Seat Material EPR;EPDM
Valve Size 1-1/2 in.
Valve Type Check Valve
Application Commercial
Origin Domestic
Product Type Check Valves
Valve Body Material Cast Bronze
