R19XCPEF 1/2NSWTX3/8OD CMP ANG VLV

R19XCPEF 1/2NSWTX3/8OD CMP ANG VLV
Fabricant: BrassCraft
0,00 $

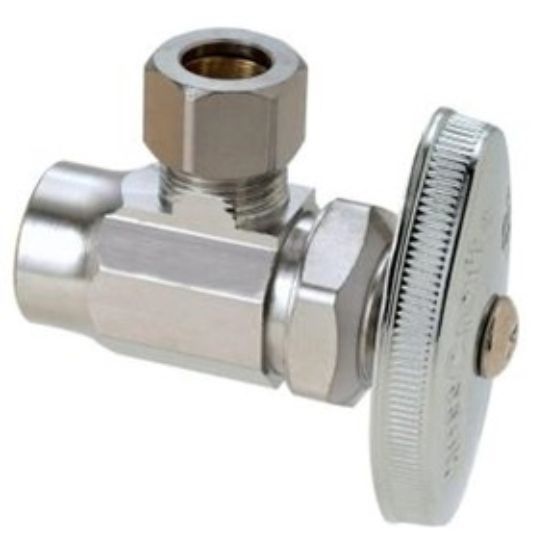

This multi-turn angle stop valve is made of chrome-plated brass with a die-cast zinc plated knurled oval handle and has a 1/2 inch Sweat x 3/8 inch OD compression-reducing connection. It has an operating temperature ranging from 40 to 140 degrees Fahrenheit and a maximum pressure of 125 PSI. The 1-piece valve is lead law compliant, IAPMO listed, CSA certified and meets the ASME A112.18.1, CSA B125.1-11, ANSI/NSF 61 and ANSI/NSF 372 standards. It is suitable for PEX tubing and water distribution systems.
Spécifications des produits
products.specs.attributename products.specs.attributevalue
Catégorie de couleur/fini Chromes
Nom de couleur/fini Chrome
Conforme aux lois sur le plomb Oui
Matériau Brass
Température maximale 140F
Pression - Maximum 125 psi
Caractéristiques techniques - ASME ASME A112.18.1
Caractéristiques techniques - Certifié CSA CSA B125.1
Caractéristiques techniques - Homologué IAPMO Oui
Type de produit Robinet d’arrêt de l’alimentation
Profondeur 1 po
Extrémité de raccordement Sweat x Compression
Extrémité de raccordement 1 Sweat
Extrémité de raccordement 2 Compression
Longueur 6-1/2 po
Taille de la soupape 1/2 po x 3/8 po
Type de soupape Supply Stop Valve
Largeur 6-1/2 po
Origine Canada
