UP53-46 1/2HP C.I. CIRC PUMP 115/230V

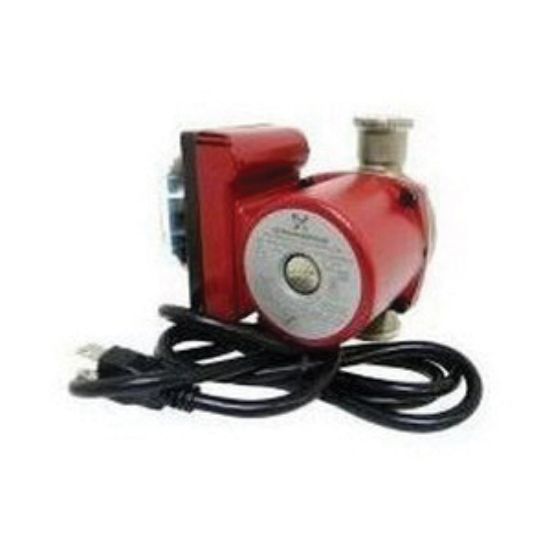

Grundfos 96633591 UP Series 1-Speed 115/230V 3/4 hp Hardwired Cast Iron Large Stator Single Phase Circulator Pump, 60Hz
Manufacturer: Grundfos
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 3.9;2.1
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Fitting Size 1 53 mm
Fitting Size 2 53 mm
Fitting Sizes 53 mm x 53 mm
Flow Rate 60.1 gpm
Height 9-21/25 in.
Horsepower 3/4 hp
Impeller Stainless Steel
Length 12-83/100 in.
Material Cast Iron
Material Type 304 SS
Maximum Feet of Head 14.09 ft.
Maximum Temperature 230
Minimum Temperature 14
Power Source Hardwired
Pressure - Maximum 145 psi
RPM 3450
Specifications - ASTM ASTM B-35;ASTM B-40
Specifications - UL Listed Yes
Style Name UP Series
Volts 115/230V
Watts 420 W
Product Type Circulator Pumps
Pump Mounting In-Line
Phase Single Phase
