L6006A1012/U CIRC CONT HI/LO LMT 100/240

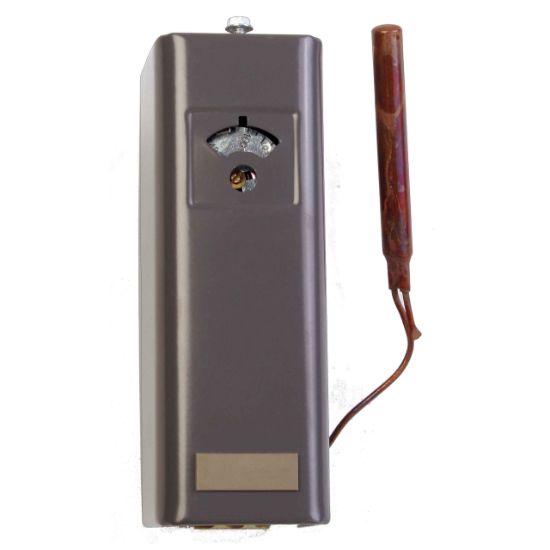

Resideo L6006A1012/U 100 to 240 Deg F High/Low limit Aquastat Controller
Manufacturer: Honeywell Home
$0.00
High/Low Limit Aquastat Controller, 1-1/2 in. Capillary Length, AMP: 0.25A at 0.25 - 12 VDC, 8A at 120 VAC and 5.1A at 240 VAC Full Load, 48A at 120 VAC and 30.6A at 240 VAC Locked Rotor, Switch Action: SPDT
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.25;5.1;8;30.6;48
Colour/Finish Category Greys
Colour/Finish Name Grey
Depth 1-1/2 in.
Height 5-5/8 in.
Length 2 in.
Specifications - CSA Certified CSA LR95329-1
Specifications - UL Listed UL File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Temperature Range 100 to 240 Deg F
Width 2 in.
Origin Mexico
Product Type Hydronic Aquastats
Volts 12/120/240VAC
Application Circulator Control And High Limit Or Low Limit
Material Copper
