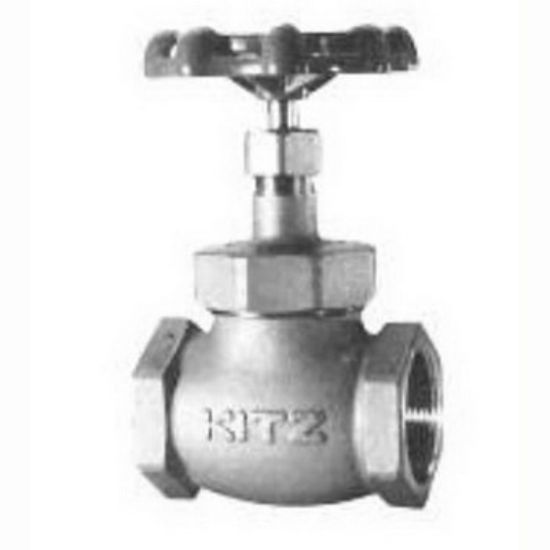

Image sur 11(AK125C) 2" IP BZ #125 ROB SOUPAPE

11(AK125C) 2" IP BZ #125 ROB SOUPAPE

11(AK125C) 2" IP BZ #125 ROB SOUPAPE
Fabricant: Kitz
0,00 $
Kitz Globe Valve, Model: 11 (AK150C), 4.72 in. Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Die-Cast Aluminum Handle, Pressure - Maximum: 200 psi WOG (Cold Water Non-Shock), 125# Pressure Class, Specifications - ANSI: ANSI B1.20.1, Specifications - ASTM: ASTM B-62, ASTM B-283, ASTM B-16, ASTM B-86, ASTM B-124, ASTM B-85, Specifications - MSS: MSS SP-80 (Type 1), Union Valve Bonnet Type, Glass Fibre Plus PTFE Valve Disc, Valve Operator: Hand Wheel, Valve Size: 2 in., Rising Valve Stem, Brass Valve Stem, Plastic GraphValve Packing Material, Other Physical Dimensions: 7.28 in. Inlet Centre to Top of Valve, 125 psi at 353F Saturated Steam and 406F Fluid Working Pressure
Spécifications des produits
products.specs.attributename products.specs.attributevalue
Extrémité de raccordement Threaded x Threaded
Extrémité de raccordement 1 Threaded
Extrémité de raccordement 2 Threaded
Longueur 4-5/7 po
Matériau Cast Bronze
Pression - Maximum 200 psi WOG
Classe de pression 125#
Taille/Dimensions 2 in.
Caractéristiques techniques - ANSI ANSI B1.20.1
Caractéristiques techniques - MSS MSS SP-80 (Type 1)
Type de chapeau Union
Matériau du disque Glass Fibre Plus PTFE
Actionneur Hand Wheel
Taille de la soupape 2 po
Tige de manœuvre Rising
Type de produit Robinets à soupape
