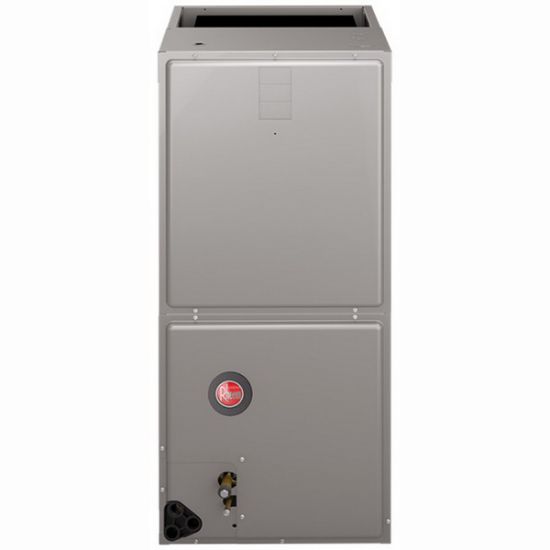

Picture of RH1P3017STANJA A-H 2.5T 17 PSC MOTOR 230

RH1P3017STANJA A-H 2.5T 17 PSC MOTOR 230

Rheem RH1P3017STANJA Steel High Efficiency Air Handler, 2.5 Tons, 15 SEER, 30000 btu/hr, 600 - 1200 cfm, 1/4 hp, 208/240V at 60Hz, 1 PH, 4.7A
Manufacturer: Rheem
$0.00
High Efficiency Air Handler, RH1P Series, 17 in. Width, 42-1/2 in. Height, Steel, AMP: 4.7A, BTU: 30000 btu/hr, Non-Communicating Communicating, Depth: 21-11/16 in., 2 Fan Speeds, Horsepower: 1/4 hp, Liquid Line (OD): 3/8 in., 600 - 1200 cfm Maximum, Phase: 1 PH, 15 SEER, Stages: Single, Suction Line (OD): 3/4 in., 2.5 Tonnes, 208/240V Volts, 8.79kW Watts, 60Hz Frequency Rating, 1075 RPM, 10 x 8 in. Blower Size
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 4.7
CFM 600 - 1200
Communicating Non-Communicating
Depth 21-11/16 in.
Height 42-1/2 in.
Horsepower 1/4 hp
Liquid Line (OD) 3/8 in.
Material Steel
MBH 30
RPM 1075
Stages Single
Suction Line (OD) 3/4 in.
Tonnage 2.5 Tons
Volts 208/240V
Watts 8.79 kW
Width 17 in.
Application Residential
Product Type Air Handlers
SEER 15
Phase Single Phase
