007M3QTFZ 3/4" BZ VLV CLP DBL ASS A/CNRT

007M3QTFZ 3/4" BZ VLV CLP DBL ASS A/CNRT
Fabricant: Watts
0,00 $

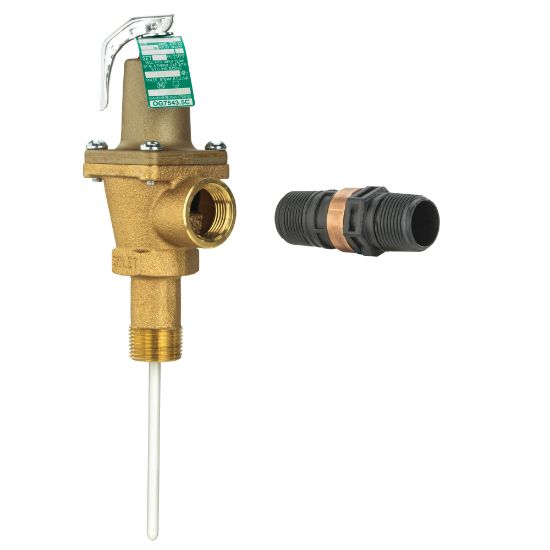

This automatic reseating temperature and pressure relief valve has a 3/4 in. NPTF male inlet, 3/4 in. NPTF female outlet, 4 in. coated extension thermostat, pressure relief setpoint of 150 psi, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a bronze body with extended shank, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. Sensor activation requires purchase of an activation kit which can be connected to existing building management systems or the Watts Cellular Gateway.
Spécifications des produits
products.specs.attributename products.specs.attributevalue
Extrémité de raccordement FNPT x FNPT
Extrémité de raccordement 1 FNPT
Extrémité de raccordement 2 FNPT
Température maximale 210
Pression - Maximum 125 psi
Taille/Dimensions 3/4 po
Caractéristiques techniques - Homologué UL Non
Type de chapeau Vissé
Taille de la soupape 3/4 po
Type de soupape Temperature and Pressure Relief Valve
Application Commercial
Type de produit Clapets antiretour
Matériau du corps de la valve Bronze
