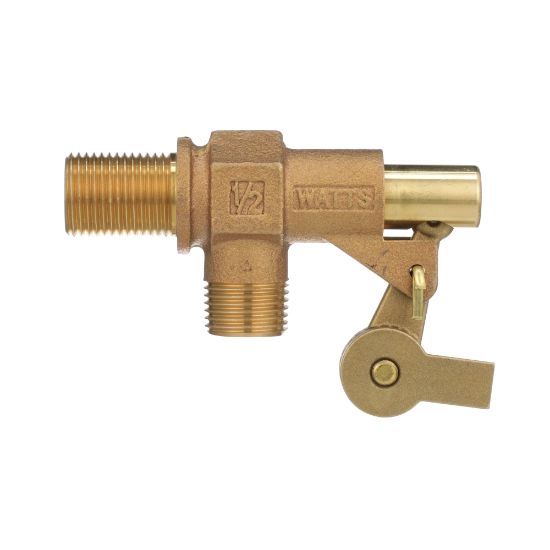

Picture of 500-TO 1/2" FLOAT VALVE THD OUTLET
Picture of 500-TO 1/2" FLOAT VALVE THD OUTLET
Picture of 500-TO 1/2" FLOAT VALVE THD OUTLET

500-TO 1/2" FLOAT VALVE THD OUTLET

Watts 0780005 500 Series 1/2 in. Bronze Heavy Duty Float Valve
Manufacturer: Watts
$0.00
This 1/2 in. high capacity heavy duty mechanical float valve is used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It is ideal for use in air conditioning, refrigeration, and irrigation systems. This valve has a bronze body with 1/2 in. machine flange on the inlet connection and male straight-pipe threaded outlet connection for locknut. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. The maximum pressure is 165 psi (11.4 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection MNPT x NPSM
End Connection 1 MNPT
End Connection 2 NPSM
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in. x 1/2 in.
Flow Rate 20 gpm;31 gpm
Height 2 in.
Length 3-1/2 in.
Material Type Buna-N
Maximum Temperature 180
Pressure - Maximum 165 psi
Recommended Valve Application Water
Schedule Heavy Duty
Style Name 500 Series
Valve Operator Lever Handle
Valve Seat Material Rubber
Valve Size 1/2 in.
Valve Type Float Valve
Product Type Float Valves
Valve Body Material Bronze
Material Bronze
Size 1/2 in.
Weight 0.76 lb
Width 3-1/2 in.
Origin USA
Fitting Size 2 1/2 in.
Application Commercial;Industrial;Agricultural;Heavy-Duty
