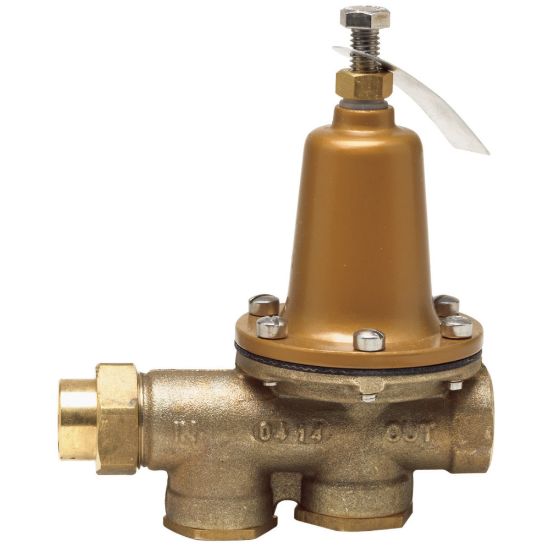

LF25AUB-Z3 LLC 1-1/2" WTR PRES REDUC VLV

Watts 0009431 LF25AUB-Z3 Series Lead Free 1-1/2 in. FNPT x Union FNPT Copper Silicon Alloy Water Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1-1/2 in. lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x Union FNPT
End Connection 1 FNPT
End Connection 2 Union FNPT
Height 9-1/2 in.
Lead Law Compliant Yes
Length 4-3/5 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 180
Minimum Temperature 33
Pressure - Maximum 300 psi
Recommended Valve Application Water
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Style Name LF25AUB-Z3 Series
Valve Disc Material EPDM
Valve Seat Material Polymer
Valve Size 1-1/2 in.
Valve Type Pressure Reducing Valve
Weight 10.00 lb
Width 8-3/4 in.
Application Commercial
Origin Domestic
Product Type Pressure Reducing & ACV Valves
Valve Body Material Copper Silicon Alloy
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in.
Size 1-1/2 in.
Valve Body Style Standard
