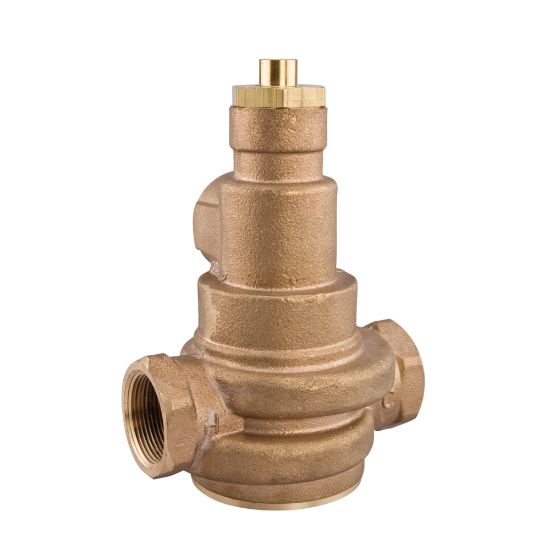

Picture of LFN170M3 LLC 2" TEMPERING VALVE

LFN170M3 LLC 2" TEMPERING VALVE

Watts 0559128 LFN170 Series Lead Free 2 in. FNPT x FNPT Brass Master Mixing Valve, Paraffin Based Thermostat
Manufacturer: Watts
$0.00
This 2 in. lead free master mixing valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. Features a lead free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut-off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. the temperature range is 90 to 180 F (32 to 82 C) and the maximum pressure is 125 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Lead Law Compliant Yes
Material Bronze
Maximum Temperature 200
Pressure - Maximum 45 psi
Size 2 in.
Valve Size 2 in.
Product Type Mixing Valves
Fitting Size 1 2 in.
Fitting Sizes 2 in.
Height 10-3/4 in.
Length 6-3/4 in.
Style Name LFN170 Series
Valve Type Mixing Valve
Weight 10.35 lb
Width 4-1/8 in.
Origin USA
ADA Compliant No
Capacity 125 gpm
Colour/Finish Category Bronze Tones
Colour/Finish Name Rough Bronze
Specifications - ASSE Standards ASSE 1017
Specifications - CSA Certified CSA B125.3
Specifications - IAPMO Listed Yes
cUPC Certified Yes
Valve Body Material Lead Free Brass
