PL-3041 3/8ODX3/8"OD STR VLV (1/4ID)

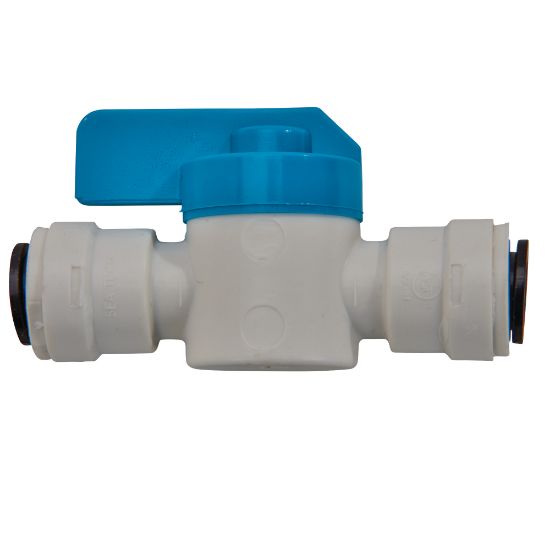

Watts 17103041 Lead Free AquaLock 3/8 in. Push to Connect x OD Plastic Straight Supply Stop Valve
Manufacturer: Watts
$0.00
This 3/8 in. OD AquaLock mini straight valve works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Push to Connect x OD
End Connection 1 Push to Connect
End Connection 2 OD
Height 5 in.
Length 4-3/5 in.
Material Plastic
Material Type Polypropylene
Maximum Temperature 60
Minimum Temperature 33
Pressure - Maximum 150 psi
Style Name 1039 Series
Valve Size 3/8 in.
Valve Type Supply Stop Valve
Weight 0.06 lb
Product Type Supply Stop Valves
Width 2 in.
Origin MX
Fitting Size 1 3/8 in.
Fitting Sizes 3/8 in.
Lead Law Compliant Yes
Size 3/8 in.
Specifications - UL Listed No
Valve Body Material Polypropylene
